Mirror Polished Pickled and Annealed Bright ASTM A270 TP304 1.4301 Stainless Steel Seamless Pipe 27X4x6000mm
Product details:
ASTM A269
ASTM A269 is a standard specification for seamless and welded austenitic stainless steel tubing for general service, a269 specification covers nominal-wall-thickness, seamless and welded austenitic steel tubing for general corrosion-resisting and low- or high-temperature service.
All tubes shall be furnished in the heat-treated condition. The steel shall conform to the chemical composition requirements. Different mechanical test requirements that includes, including the flaring test, flange test, hardness test, and reverse flattening test are presented. Also, each tube shall be subjected to the non-destructive electric test or the hydrostatic test. Finally, the hardness requirements for different grades of tubes are highlighted.
Material furnished under this specification shall conform to the applicable requirements of the current edition of Specification A1016/A1016M, unless otherwise provided herein.
| Size | Outer Diameter | Seamless:6-500mm or Customized |
| Welded:6-2500mm or Customized |
| Wall Thickness | Seamless:0.5-150mm or Customized |
| Welded:3-40mm or Customized |
| Length | 1-12m as customer requirement |
| Material | 201,304,309S,310S,316,316L,316Ti,317,317L,321,904L,439 |
| Surface Fnished | No.1 No.3 No.4 HL 2B BA 4K 8K 1D 2D |
| Testing Methods | Pressure test,Flaw detection,Eddy current testing, Hydrostatic testing or Ultrasonicexamination and also with chemical and physical property inspection |
| Standard | ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JISG3463,GOST9941,EN10216, BS3605,GB13296 |
| Application | - Food processing equipment, particularly in beer brewing, milk processing & winemaking
- Kitchen benches, sinks, troughs, equipment and appliances
- Architectural paneling, railings & trim
- Chemical containers, including for transport
- Heat Exchangers
- Woven or welded screens for mining, quarrying & water filtration
- Pipe fittings.
|
| Container Size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
| Trade Terms | Price terms | FOB,CFR |
| Payment terms | T/T,L/C |
Chemical composition:
| Grade of Material | C | Si | Mn | P | S | Ni | Cr | Mo |
| AISI 201/ASTM201/UNS S20100/DIN 1.4372/JIS SUS201 | ≤0.15 | ≤1.00 | 5.50~7.50 | ≤0.060 | ≤0.03 | 1.00 ~1.50 | 13.50~15.00 | |
| AISI 202/ASTM 202/UNS S20200/DIN 1.4373/JIS SUS202 | ≤0.15 | ≤1.00 | 7.50~10.00 | ≤0.060 | ≤0.03 | 4.00~6.00 | 17.00~19.00 | |
| AISI 304/ASTM 301/UNS S30400/DIN 1.4301/JIS SUS304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00~11.00 | 18.00~20.00 | |
| AISI 304L/ASTM 304L/UNS S30403 DIN1.4306/JIS SUS304L | ≤0.035 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00~13.00 | 18.00~20.00 | |
| AISI 316/ASTM 316/UNS S31600/DIN 1.4401/JIS SUS316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 |
| AISI 316L/ASTM 316L/UNS 31603/DIN 1.4404/JIS SUS316L | ≤0.035 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 |
| AISI 316L Ti/ASTM 316L/UNS S31635/DIN 1.4571/JIS SUS 316Ti | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 |
| AISI 409L/ASTM 409L | ≤0.03 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.03 | | 10.50~11.75 | |
| AISI 904L/ASTM 904L | ≤0.02 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.035 | 23.0-28.0 | 19.0-23.0 | 4.0-5.0 |
Company information:
QING SHAN s a professional production of stainless steel sheet, stainless steel coil, stainless steel tube enterprises, testing equipment is complete, strong technical force. A wide range of products, high quality, reasonable price, fashionable style, widely used in decoration, kitchen, construction, medical, building materials and other industries.
FAQ
1. What is your main products?
Stainless steel and carbon steel such as coils and sheet,bar,tube and so on
2. Are you trading or factory?
We have our own production line
3. Can we visit your factory?
Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
4. Why we choose you?
1) Sample can be offered.
2) We have 10 year experience for producing steel products.
3) We have full stock,and can deliver within short time for normal size.
4) Prime Quality + Best Price + Quick Response + Reliable Service.
5) All products need in quality control by skill worker before shipment, also we can accept third-party inspection.
|
|

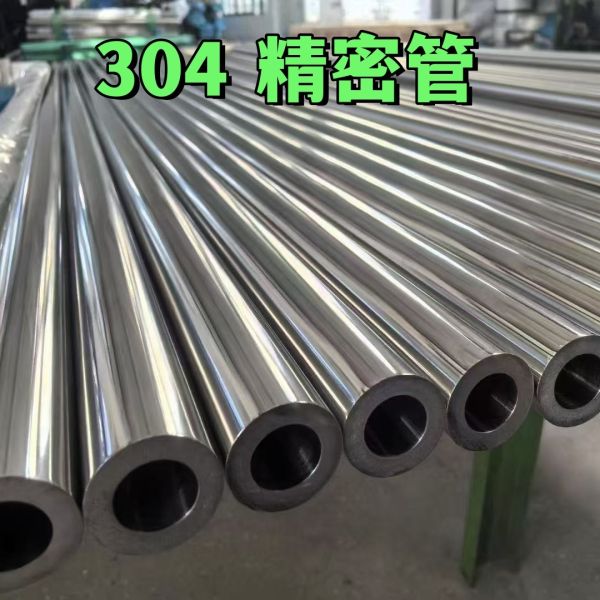

Mirror Polished Pickled and Annealed Bright ASTM A270 TP304 1.4301 Stainless Steel Seamless Pipe 27X4x6000mm Images
|
